A small strip of land between the Atlantic and Pacific ocean might seem like an odd place to look for answers about evolution. But, the Isthmus of Panama is considered to be one of the most important pieces of evidence in questions that involve the triggering of the last Ice Age, the separation of marine species, global ocean current circulation, and even the land connection between North and South America (O’Dea et al. 2016). The one problem is: scientists can’t agree on when the isthmus formed.
The isthmus, a narrow strip of land connecting two landmasses, was thought to have formed and closed around three million years ago (Ma), based on converging geological and biological evidence (Stehli and Webb 1985, chaps. 2, 4, 5, 12; Keigwin 1978). Subduction of the Pacific Plate beneath the Caribbean Plate formed the volcanic Panama arc, which eventually then collided with South America. This helped close the Central American Seaway (Stehli and Webb 1985, chaps. 2-4). Around this time, the Great American Biotic Interchange, a massive land mammal migration, took place, as well as various fossils (Foraminifera) began to show evidence of speciation (Stehli and Webb 1985, chaps. 5, 12; Keigwin 1978). These observations supported the 3 Ma closure date, but they did not provide an explanation of how the closure happened.
By the 1990s, advances in molecular techniques allowed scientists to investigate whether the isthmus had formed gradually rather than all at once. One approach was to study marine species on opposite sides of the isthmus. The formation of the emerging land bridge isolated populations that had shared the same seaway, allowing allopatric speciation (Scott 1916). By comparing accumulated genetic differences, scientists could estimate when these populations diverged. In 1993, researchers compared seven pairs of closely related snapping shrimp (Alpheus) from opposite sides of the isthmus to estimate when their populations diverged (Table 1) (Knowlton et al. 1993). They found that some populations had stopped exchanging genes millions of years before the previously accepted 3 Ma closure date. In Table 1, the taxa column identifies the populations being compared and the bolded rows indicate the seven pairs identified as closest relatives. Genetic divergence is measured using alloenzyme differences and mitochondrial DNA (mtDNA) sequencing, with higher values indicating greater genetic divergence (Knowlton et al. 1993).

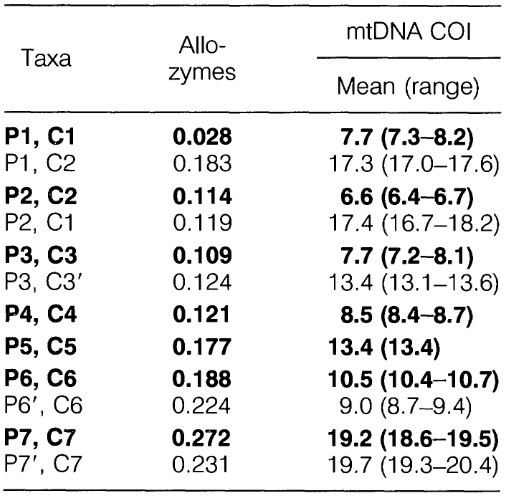

Table 1. Genetic divergence between snapping shrimp taxa from the Pacific (P) and Caribbean (C) side of the Isthmus of Panama (Knowlton et al. 1993).
This evidence was one of several findings that challenged the original theory that the Isthmus of Panama closed relatively suddenly around 3 Ma (Bacon et al. 2015; Coates et al. 2013). Another clue came from uranium-lead dating technology, which was not available previously. Researchers found minerals called zircons originating from Panama in sedimentary rocks dating back 13 to 15 Ma (Figure 1). Since these minerals could have been transported there by rivers flowing from the Panama arc, this means that parts of the isthmus had already emerged above sea level and had become connected to South America much earlier than previously thought (Montes et al. 2015).
So, are Panama’s shrimp telling time correctly? They’re not necessarily wrong, but each piece of evidence reveals a different part of the story. Earlier research placed the isthmus’ complete closure around 3 Ma (Stehli and Webb 1985; Keigwin 1978). However, later studies proposed that marine populations speciated much before and that parts of the isthmus had emerged as early as 13-15 Ma (Knowlton et al. 1993; Montes et al. 2015). Ultimately, although the 3 Ma date still holds, it is no longer the complete formation story of the Isthmus of Panama.
References
Bacon, Christine D., Daniele Silvestro, Carlos Jaramillo, Brian Tilston Smith, Prosanta Chakrabarty, and Alexandre Antonelli. “Biological Evidence Supports an Early and Complex Emergence of the Isthmus of Panama.” Proceedings of the National Academy of Sciences 112, no. 19 (2015): 6110–15. https://doi.org/10.1073/pnas.1423853112.
Coates, Anthony G., and Robert F. Stallard. “How Old Is the Isthmus of Panama?” Bulletin of Marine Science 89, no. 4 (2013): 801–13. https://doi.org/https://doi.org/10.5343/bms.2012.1076.
Knowlton, Nancy, Lee A. Weight, Luis Aníbal Solórzano, DeEtta K. Mills, and Eldredge Bermingham. “Divergence in Proteins, Mitochondrial DNA, and Reproductive Compatibility Across the Isthmus of Panama.” Science 260, no. 5114 (1993): 1629–32. http://www.jstor.org/stable/2881712.
Keigwin, Lloyd D. “Pliocene Closing of the Isthmus of Panama, Based on Biostratigraphic Evidence from Nearby Pacific Ocean and Caribbean Sea Cores.” Geology 6, no. 10 (1978): 630. https://doi.org/10.1130/0091-7613(1978)6%3C630:PCOTIO%3E2.0.CO;2.
Montes, C., A. Cardona, C. Jaramillo, et al. “Middle Miocene Closure of the Central American Seaway.” Science 348, no. 6231 (2015): 226–29. https://doi.org/10.1126/science.aaa2815.
O’Dea, Aaron, Harilaos A. Lessios, Anthony G. Coates, et al. “Formation of the Isthmus of Panama.” Science Advances 2, no. 8 (2016): e1600883. https://doi.org/10.1126/sciadv.1600883.
Scott, W. B. “The Isthmus of Panama in Its Relation to the Animal Life of North and South America.” Science 43, no. 1100 (1916): 113–24. http://www.jstor.org/stable/1640614.
Stehli, Francis G., and S. David Webb. 1985. The Great American Biotic Interchange. Plenum Press.
Comments
16 Responses to “Are Panama’s Shrimp Telling Time Right?”
Hi iSci, I chose this topic because I thought it was very relevant to the evolution unit we’re doing in LifeSci, especially the part about allopatric speciation. Many marine populations were separated by the formation and complete closing of the isthmus and they’ve evolved in very different ways. Additionally, I connected the plate tectonics material and dating techniques we’re learning about in Earthsci to a relevant scientific debate that researchers are still working on. Hopefully it’s an interesting read!
Hey Mansi,
This is a really well written blog! A couple edits I have:
– Maybe consider using a figure to show the geographical features (plates) that you described in paragraph 2 so your readers can visualize it better
– In table 1, explain what is being show in more depth. Especially in the “taxa” column, it is unclear what it is describing from just the figure and your caption. Also explain what the bolded rows signify.
– In the last sentence of your figure 1 caption, remove the “at least” or rephrase the sentence to make it more concise.
Happy editing!
Hanna
Hi Hanna – thank you so much for your feedback! I included your second and third point and I think it really helped the blog post flow more. Unfortunately, I didn’t have the word count to include another figure but I reworked P2 to make it more clear.
Thanks again!
Mansi
Hi Mansi, this was a very interesting blog that combined both Earth Science and Life Science and I really enjoyed reading it! Here are some suggestions that will hopefully help you in the editing stage:
— For your table and figure captions, try to make them smaller to make them stand out. As well, maybe try to make the”references” word bigger and bold.
– Refer to Figure 1 in your paragraph before showing the figure
– Just be mindful of punctuations, for example, in P1S3, delete et the comma after “problem” for better flow, in P4S2, add a comma after “technology” in P5S5, add a comma after “instead.”
-I agree with Hanna to explain your Table 1 caption further
Cheers,
Jojo
Hey Jojo! Thanks for the feedback. I was able to implement all of your suggestions so thank you for helping me with the clarity/punctuation of the post!
Best,
Mansi
Hi Mansi,
Great job writing your blog post, and such a cool topic!
– P1S3, I recommend adding an em dash between “Unfortunately, there is one problem —scientists can’t necessarily agree on when the isthmus formed” for better flow.
– Remember to add your in-text citations for the first two sentences in paragraph 2; if you used the same citation as in sentence 3, the correct format would be to include it in the first sentence and the last (you don’t have to cite anything in the middle)!
– A few of your in-text citations include a comma between author names and date; Chicago style doesn’t require a comma.
Good luck on your editing process!
– Harshita
Hi Harshita,
Thanks a ton for the feedback! I was able to implement all of your changes so hopefully that helps with the citation formatting and the sentence structure.
Mansi
Hi Mansi,
Great work on your blog post, it was really an interesting read.
Here are a few feedbacks:
– P5S1, I would recommend getting rid of the “right” in the question, so it flows better as a question.
– I would recommend formatting the References as a title to separate it from the rest of the text.

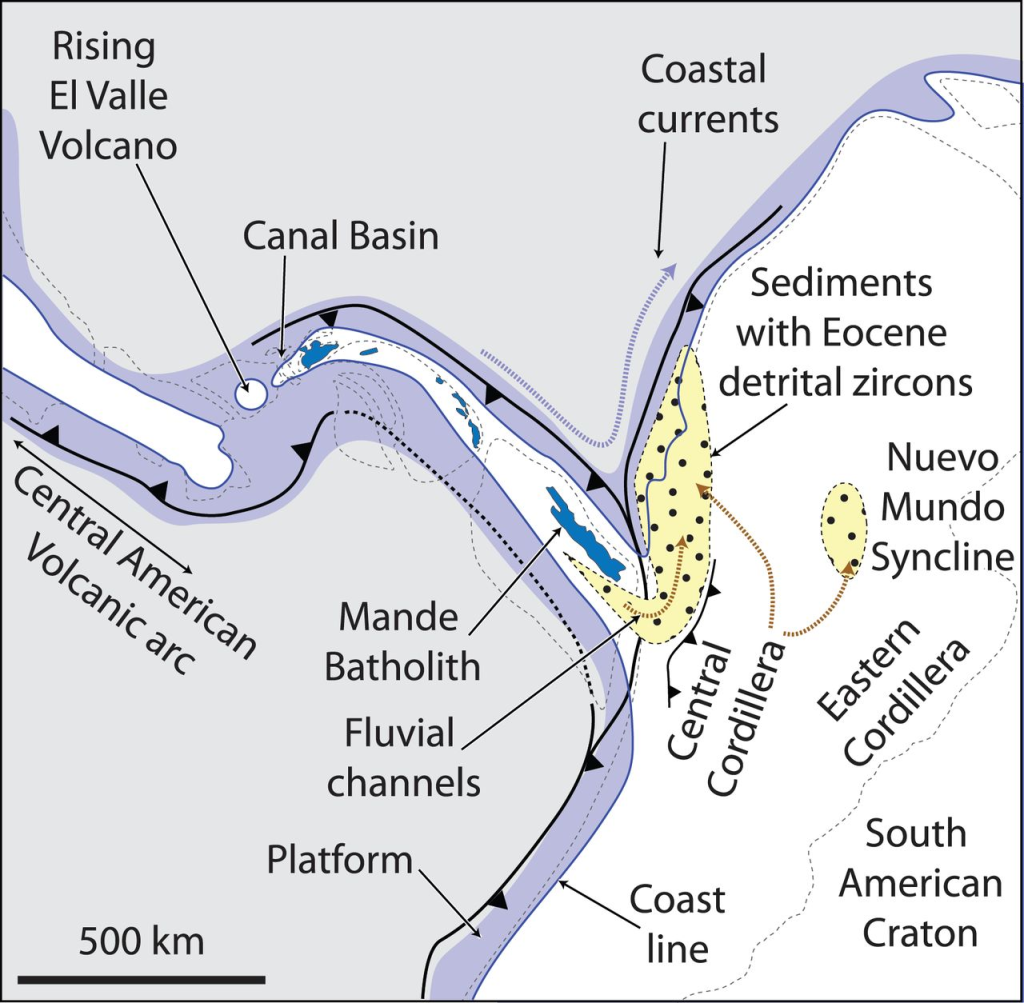

– In your figure 1 caption, I would recommend removing the word “which” from the sentence “Reconstruction of the Panama arc and northwestern South America during the middle Miocene (13 to 15 Ma), which shows the region’s geography and zircon deposits during an earlier stage of the formation.”
